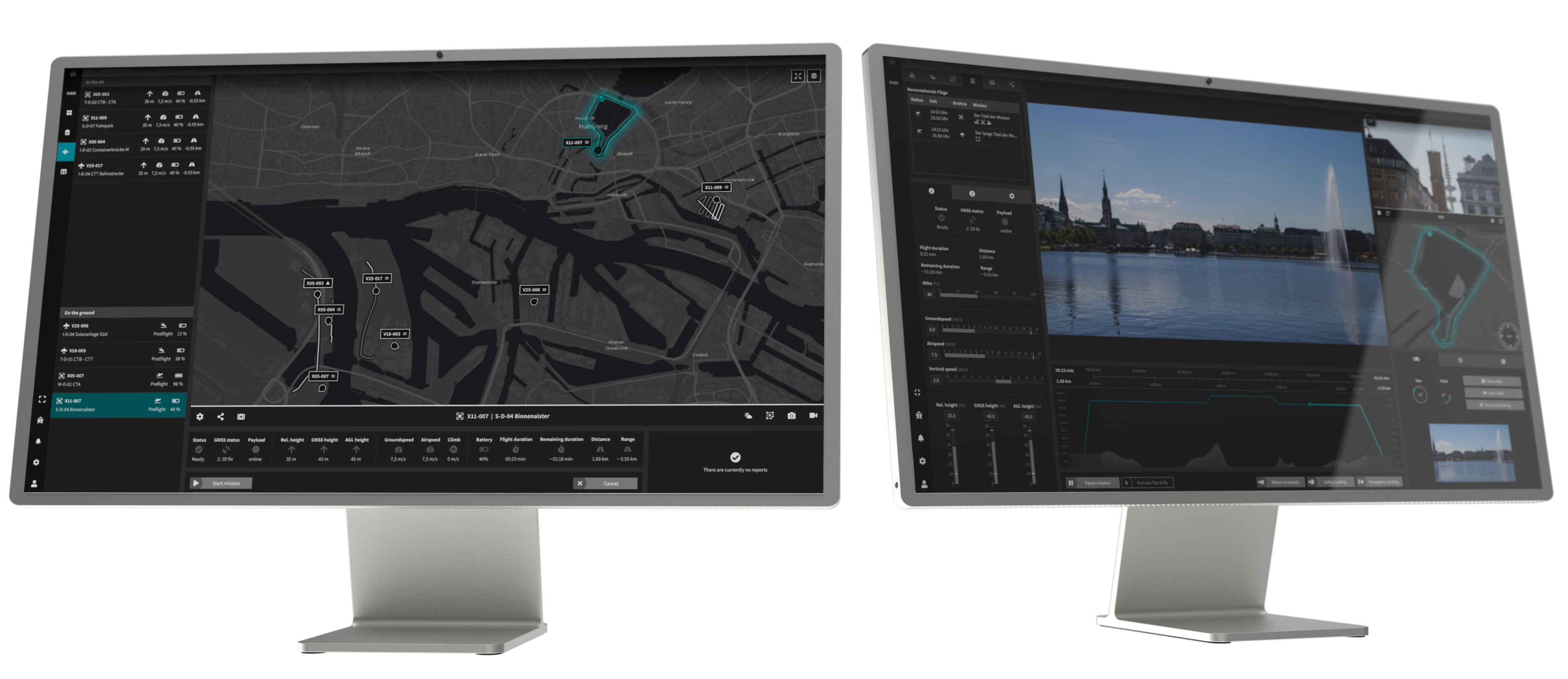

Integrated Control Center

100+ simultaneous BVLOS operations. Safe, secure and designed to grow with you.

Imagine overseeing more than 100 drones and mobile robots all from a single location and operating simultaneously. That’s the power of the Integrated Control Center. Used by organizations worldwide, the ICC offers a new standard in scalable, centralized automation.

Features

Take control

Planning

Complex missions for multi-modal robots – in 2D, 3D, and with automated grid planning.

Piloting

Supervision of automated missions with manual control, low latency video, checks, and automated documentation.

Security

Role-based user management, IEC 62443 cybersecurity certification, and optional on-premises hosting.

Scheduling

Efficient, time-based scheduling for hundreds of operations per day.

Management

Integrated mission data, video, and fleet management in a unified platform.

Scalability

Cloud-native backend designed for more than 100 operations, efficient scaling, and API integration.

What stands out

Made to Fit – Built to Scale

Modular Platform

The ICC goes far beyond simple remote control. It’s a fully developed modular IoT platform, combining process management, control center software, and integrated hardware.

Fully Integrated

With native integration into systems like SAP and other ERP, SCM, or EAM tools, it brings automation directly into existing business workflows. From mission planning to AI-supported data analysis – every step is covered.

Scalable to the sky (and beyond)

Thanks to open standards and modular architecture, it adapts as your operations evolve.

Find your setup

Drones

Our drones are an inherent part of the Integrated Control Center (ICC). This means: The hardware forms a unit with the software, right through to data analysis or processing modules. To truly map the entire process chain for efficiently automated BVLOS operations.

X4

First Responder Drone

X11

Multi-Purpose Drone

X25

Cargo Drone

V25

VTOL

Additional equipment

Advanced Hardware

Automated 24/7 BLVOS drone operations require an automated station where drone take-off, land and recharge the batteries. Use cases like perimeter protection, or intra-logistics often require ground robots to complete tasks automatically. The Capra Hircus mobile robot is also an integral part of the ICC, as is the AllSky station.

Capra Hircus

Multi-purpose Mobile Robot

All Sky

Automated Drone Base Station

100+ BVLOS Operations

One Interface

Whether scaling vertically across departments or horizontally across sites – the ICC handles it with ease. Its cloud-based backend is browser-accessible and supports efficient management of simultaneous drone and AMR operations. API interfaces allow seamless integration with third-party systems, while a central data lake ensures structured storage and processing of mission data.

Reimagine what’s possible.

Neeraj Bansal

Chief Revenue Officer

X4

First Responder Drone

  • German engineering – made in the EU
  • Industry grade hexacopter
  • Multi-purpose drone
  • IEC 62443 cyber security-certified
  • Multi-processor architecture on the drone
  • Dedicated AI accelerator hardware
  • Fully integrated ROS2 architecture for advanced robotics
  • 4G fully encrypted data link for command, control and live video
  • Full integration into HHLA Sky’s ICC

Performance

Operating temperatures

– 10 to +40° C / 14 to 104° F

Propulsion system

12 x 5 inch carbon propellers (x4)

Environmental protection

rain and dust proof IP54

Flight time (with payload)

up to 30 min

Wind stability (max.)

up to 15 m/s / 33.6 mph

Range (max.)

27 km / 16,77 mi

Speed (max.):

15 m/s / 33.6 mph

Dimensions

Excluding propellers

49,5 x 46 x 19 cm / 19.5 x 18.1 x 7.5 in

Including propellers

74,5 x 78 x 19 cm / 29.3 x 30.7 x 7.5 in

Folded

44,5 x 25 x19 cm / 17.5 x 9.8 x 7.5 in

Transport case

56 x 46 x 27 cm / 22 x 18 x 10.6 in

Maximum take-off mass

< 4 kg / < 8.8 lbs

Command & Control

Radio link telemetry RC

2,4 Ghz encrypted data link

Radio link ICC

4G/5G IoT link with diversity antenna

Power Management

Flight battery

6S (22.2V) Lithium Polymer

Capacity / nominal energy

12,000 mAh / 226.40 Wh

Redundancy

Double battery, short circuit protected

Payload

Thermal

FLIR Hadron 640 R dual sensor

IR sensor

640 x 512 radiometric thermal IR

RGB sensor

64 MP RGB sensor

Safety

  • Fully automated parachute system
  • Integrated condition monitoring system
  • Fully redundant flight termination system

Have a closer look

Learn more about what our drones can do for you.

Neeraj Bansal

Chief Revenue Officer

X11

Multi-purpose Drone

  • German engineering – made in the EU
  • Industry grade hexacopter
  • Multi-purpose drone
  • IEC 62443 cyber security-certified
  • Multi-processor architecture on the drone
  • Dedicated AI accelerator hardware
  • Fully integrated ROS2 architecture for advanced robotics
  • 4G fully encrypted data link for command, control and live video
  • Full integration into HHLA Sky’s ICC

Performance

Operating temperatures

– 10 to +40° C / 14 to 104° F

Propulsion system

17 x 5.5 in carbon propellers (x6)

Flight time (with payload)

up to 20 min

Wind stability (max.)

up to 15 m/s / up to 33.6 mph

Range (max.)

18 km / 11.18 mi

Speed (max.):

15 m/s / 33.6 mph

Dimensions

Excluding propellers

100 x 100 x 53 cm / 39.4 x 39.4 x 20.9 in

Including propellers

143 x 143 x 53 cm / 56.3 x 56.3 x 20.9 in

Transport case

80 x 58 x 48 cm / 31.5 x 22.8 x 18.9 in

Accessories case

56 x 46 x 27 cm / 22 x 18.1 x 10.6 in

Maximum take-off mass

< 11 kg / < 24.3 lbs

Command & Control

Radio link telemetry RC

868 MHz / 2.4 GHz (3 times redundant)

Radio link mobile radio

4G IoT link with diversity antenna (5G Opt.)

Power Management

Flight battery

2x 6S (22.2V) Lithium Polymer

Capacity / nominal energy

2x 12,000 mAh / 226.40 Wh

Redundancy

Double battery, short circuit protected

Payload

IR sensor

variable

EO sensor

variable

Cargo

variable (up to 3 kg / 6.6 lbs)

Safety

  • Fully automated parachute system
  • Integrated condition monitoring system
  • Fully redundant flight termination system
  • Engine redundancy

Have a closer look

Learn more about what our drones can do for you.

Neeraj Bansal

Chief Revenue Officer

X25

Cargo Drone

  • German engineering – made in the EU
  • Industry grade octocopter
  • Payload up to 10 kg (22 lbs)
  • Up to 27 km range (16.77 miles)
  • Up to 30 minutes air time (with max. payload)
  • 5G fully encrypted data link for command and control
  • Full integration into HHLA Sky’s ICC

Performance

Operating temperatures

– 10 to +40° C / 14 to 104° F

Propulsion system

28 x 9.2 in foldable carbon propellers (x8)

Flight time (with payload)

up to 30 min

Environmental protection

rain and dust proof IP54

Wind stability (max.)

up to 18 m/s / up tp 40 mph

Range (max.)

27 km / 16.77 mi

Speed (max.):

15 m/s / 33.6mph

Dimensions

Excluding propellers

92 x 125 x 57 cm / 36.2 x 49.2 x 22.6 in

Including propellers

154 x 187 x 57 cm / 60.8 x 73.8 x 22.6 in

Transport case

114.5 x  75 x   68.5 (incl. 14 cm rollers height) / 45 x 29.5 x 27 in (incl. 5.5 in rollers height)

Maximum take-off mass

< 25 kg / < 55 lbs

Command & Control

Radio link telemetry RC

2.4 GHz link

Radio link mobile radio

4G IoT link with diversity antenna (5G Opt.)

Power Management

Flight battery

4x 6S (22.2V) Lithium Polymer

Capacity / nominal energy

4x 21,000 mAh / 466.20 Wh

Redundancy

Four batteries, short circuit protected

Payload

Cargo

variable (up to 10kg /22lbs)

Safety

  • Fully automated parachute system
  • Integrated condition monitoring system
  • Fully redundant flight termination system
  • Engine redundancy

Have a closer look

Learn more about what our drones can do for you.

Neeraj Bansal

Chief Revenue Officer

V25

VTOL

  • German engineering – made in the EU
  • Industry grade VTOL drone
  • 4G fully encrypted data link for command, control and live video
  • 27 m/s maximum speed (62 mph)
  • 190 km range (118 miles)
  • Up to 3 hours air time
  • Different power configurations for extended flight times optional
  • Full integration into HHLA Sky’s ICC

Performance

Operating temperatures

– 10 to +40° C / 14 to 104° F

Flight time (with payload)

up to 3 hours

Wind stability (max.)

up to 11,1 m/s / up tp 24.8 mph

Range (max.)

190km / 118 mi

Speed (max.):

27 m/s / 62.14 mph

Dimensions

Full dimensions

299 x 159 x 47cm / 117.71 x 62.6 x 18.5 in

Transport case

152 x 84 x 52cm / 59.8 x 33.1 x 20.5 in

Maximum take-off mass

< 25 kg / < 55 lbs

Command & Control

Radio link telemetry/video

2.4 GHz link

Radio link telemetry/payload

4G IoT link with diversity antenna (5G Opt.)

Power Management

Flight battery

4x 6S (22.2V) Lithium Polymer

Capacity / nominal energy

4x 21,000 mAh / 466.20 Wh

Redundancy

Four batteries, short circuit protected

Payload

IR sensor

variable

EO sensor

variable

Cargo

variable

Safety

  • Fully automated parachute system
  • HHLA Sky certified companion computer
  • Automatic stall recovery

Have a closer look

Learn more about what our drones can do for you.

Neeraj Bansal

Chief Revenue Officer

Capra Hircus

Multi-purpose Mobile Robot

  • Made in Denmark by Capra Robotics
  • Multi-purpose mobile robot
  • Seamless ROS2 and MQTT integration
  • Autonomous operation
  • Safety solutions according to ISO 13849-1
  • Ground-breaking new safety-concept of intuitively recognizable intention markers
  • Caprine Agility: unique wheel frame allowing for 360°-turning on the spot, drives on slopes with 50% rise and 14 cm curb climb
  • Long operating time: 10+ hours
  • Long range: 31 mi (50 km)
  • Full integration into HHLA Sky’s ICC

Performance

Operating temperatures

– 20 to +40° C / -4 to 122° F

Maximal speed

6 km/h / 3.7 mph

Maximal incline

50%

Motor type

4pcs, hub motor of 250W each

Operating time (max.)

10h

Range (max.)

50 km / 31 mi

Dimensions

Full dimensions

110 x 60 x 37 cm / 43.5 x 23.6 x 14.7 in

Clearance height

12,6 cm / 4.96 in

Weight (with 2 batteries)

50 kg / 110.2 lbs

Command & Control

External communication

4G router with Dual-band Wi-Fi (G/N/B) and Dual Sim

Manual Steering

Remote Control

Power Management

Battery

Li-NMC

Capacity / nominal energy

up to 4 units 25.9V, 20 Ah each

Payload

IR sensor

variable

EO sensor

variable

Cargo

variable (up to 50kg / 110.2lbs)

Safety

  • Safety functions according to ISO 13849-1
  • Brake validation
  • Bumper bars
  • Detection of manually triggered brake
  • Emergency stop

Have a closer look

Learn more about what our drones can do for you.

Neeraj Bansal

Chief Revenue Officer

All Sky

Automated Drone Base Station

  • Automated drone base station for remote take-off, landing, charging and weather protection
  • Enables automated 24/7 BVLOS drone operations, even at large-scale
  • Integrated video and weather broadcasting
  • < 60 seconds from command to take-off
  • LTE / Ethernet / WIFI / 5G COM / optional: Edge computing capability
  • Emergency power supply to close or open roof in case of power loss
  • Full integration into HHLA Sky’s ICC

Performance

Operating temperatures

– 70 to +55° C / -94 to 131° F

Wind resistance

up to 33,3 m/s / up tp 124 mph

Dimensions

Height

280 cm / 9.2 ft

Weight

<1.000 kg / <2.205 lbs

Max. diameter

230 cm / 7.5 ft

Max. drone diameter

160 cm / 5.2 ft
